HCS-G001 Ball & Race LCD Game

Description

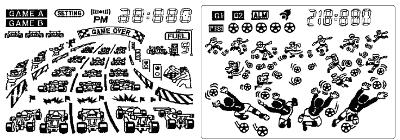

A 4-bit single chip microcomputer is implemented into a two-LCD game. It can be used as one single game or 2 games with 2 changeable LCD modules.

LCD Specification   Operating Voltage 3 Volts Duty 1/4 Bias 1/2 HCS-G001.PDF

Features

• 2 games in one chip by bonding option (refer to circuit) - Soccer game or Car race game
• Bonding option (refer to circuit) to select time function or without time function
• Checker option to select Car game when bonding option is Soccer game. Change LCD module correspondingly
• Checker option to select Soccer game when bonding option is Car game. Change LCD module correspondingly
• Clock with 12 / 24 hour format by key selection
• Daily alarm time. Stop by any key when the alarm melody is playing
• Sound on or off by key. Default sound is enabled
• Demo mode is available
• Test alarm (melody)
  • when power is reset
  • in alarm mode by pressing S4
• Operation Voltage: 1.5 volts
• R C oscillation
• Direct drive LCD 1/4 duty 1/2 bias at 3 volt
• 4 Operation buttons
