HCS-G002 Ball & Shooting LCD Game

Description

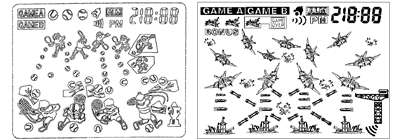

A 4-bit single chip microcomputer is implemented into two LCD games. It can be one single game or 2 games with 2 LCD modules changed.

LCD Specification   Operating Voltage 3 Volts Duty 1/4 Bias 1/2 HCS-G002-0.PDF

Features

• 2 games in one chip by bonding option(refer to circuit) - Tennis game and Shooting game
• Bonding option (refer to circuit) to select time function or without time function
• Shooting game option can be selected by the key when bonding option is Tennis game. Changes LCD module correspondingly
• Tennis game option can be selected by the key when bonding option is Shooting game. Changes LCD module correspondingly
• Clock with 12/24 hour format can be selected by a key
• The daily alarm time melody can be stopped by any key
• Sound for the game can be on or off by pressing the key
• Demo mode is available
• Tests alarm melody when power is reset
• Operation Voltage: 1.5 volt
• RC oscillation
• Direct drive LCD 1/4 duty 1/2 bias at 3 volt
• 4 operation buttons
• Chime function is available
