Elcom

Features

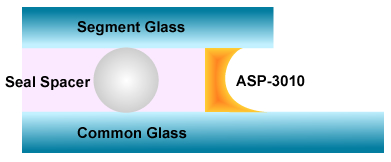

• It is paint type, low viscosity, high penetration, making it easy to penetrate into gap of LCD panels and can be coated uniformly.
• Adjusted the resistivity of coated film surface to 10⁹~10¹⁰Ω/⌊, anti-static feature is well performed as well as preventing short-circuit between transparent ITO electrodes.
• It is ion-conductive type, and is hardly suffered from environmental condition. The effectiveness of anti-staticity lasts eternally.

Material Components

• Electrical-conductive filler: antimony dope tin oxide
• Resin element: urethane silicone types
• Solvent element: ketone type
• Solid contents: 20w t %
• ROHS Compliant

Coating Method

• Drop the paint (0.5~2.0g in necessity) by dispenser onto one corner of joint gap of the panel and let it penetrate. Thereafter, dry at 50~70°C for 2~3 minutes.
