HCS-G023 Poker LCD Game

Description

The model is implemented by a 4-bit single chip micro-controller into a LCD Poker Card Game.

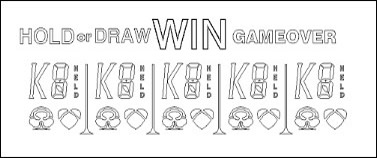

LCD Specification   Operating Voltage 3 Volts Duty 1/4 Bias 1/3 Viewing Direction 6H HCS-G023.PDF

Features

• Operating voltage: 1.5V
• 8 buttons' operation:
  • ON / DEAL
  • SOUND
  • HAND / SCORE
  • HOLD CARD 1 TO 5
• Built-in LCD driver directly drive 1/3 bias 1/4 duty 3 V LCD.
• Auto-off in about 1 minute if there is no key activity.
• Initial score: 400
• Max Score: 9999
• Sound effects:
  • Keytone
  • Melody for Losing
  • Melody for Winning
